Description

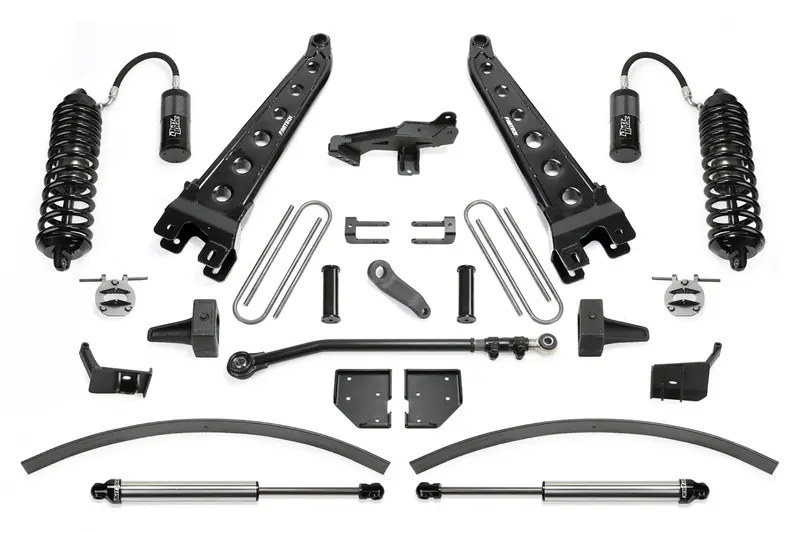

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
Specifications:
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE – 38/13.5R18 Wheel – 18X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 38/15.5R18 Wheel – 18X9 W/4 3/4″ BS W/CUTTING; TIRE SIZE – 38/13.5R20 Wheel – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 38/15.5R20 Wheel – 20X9 W/5″ BS W/CUTTING; TIRE SIZE – 40/15.5R20 Wheel – 20X9 W/5″ BS W/CUTTING; NON DUALLY MODELS ONLY.; 16VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 167. FITS DIESEL MODELS ONLY; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.; 179. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92035); DOES NOT FIT VEHICLES EQUIPPED WITH TREMOR OFF-ROAD PACKAGE |
| Description_ASC | TIRE SIZE-38/13.5R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-38/15.5R18 WHEEL-18X9 W/4 3/4in. BS W/CUTTING; TIRE SIZE-38/13.5R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-38/15.5R20 WHEEL-20X9 W/5in. BS W/CUTTING; TIRE SIZE-40/15.5R20 WHEEL-20X9 W/5in. BS W/CUTTING; 3. NON DUALLY MODELS ONLY.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 167. FITS DIESEL MODELS ONLY; 175. VEHICLES W/FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.; 179. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92035); 213. DOES NOT FIT VEHICLES EQUIPPED WITH TREMOR OFF-ROAD PACKAGE |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 2.25DLSS N/R |
| Description_DES | 4.0DLSS R/R 17 SD 8″ DRVR |
| Description_DES | 4.0DLSS R/R 17 SD 8″ PASS |
| Description_DES | 8″ RAD ARM SYS W/ 4.0 & 2.25 17-21 FORD F250/F350 4WD DIESEL |
| Description_DES | 8″ RADIUS ARM BOX |
| Description_DES | 8″ REAR BOX KIT |
| Description_DES | Radius Arm Lift System |
| Description_EXT | 8″ RAD ARM SYS W/ 4.0 & 2.25 17-21 FORD F250/F350 4WD DIESEL. |
| Description_EXT | Component Box; For 8 in. Lift; For PN[K2265DL/K2297DL/K2301DL] Rear Box Kit; |
| Description_EXT | Component Box; For 8 in. Lift; For PN[K2265DL/K2297DL/K2301DL]; |
| Description_EXT | Dirt Logic 2.25 Shock Absorber; For PN[K2144DL/K2206DL/K2205DL/K2158DL/K2159DL/K2217DL/K2218DL/K2243DL/K2219DL/K2244DL/K2232DL/K2215DL/K2216DL/K2253DL/K2204DL]; Stainless Steel; |
| Description_EXT | Dirt Logic 4.0 Resi Coilover; Front Left; For 8 in. Lift; For PN[K2301DL/K2302DL/K2303DL]; |
| Description_EXT | Dirt Logic 4.0 Resi Coilover; Front Right; For 8 in. Lift; For PN[K2301DL/K2302DL/K2303DL]; |
| Description_EXT | Radius Arm Lift System; 8 in. Lift; Incl. Front Dirt Logic Resi 4.0 Shocks And Rear Dirt Logic 2.25 Shocks; |
| Description_FAB | Adjustable Alignment Cam Allows Caster Adjustment |
| Description_FAB | Dimple Die Side Plates |
| Description_FAB | Fully Tubular Structure |
| Description_FAB | Patent Pending Radius Arms |
| Description_FAB | Unsurpassed Strength And Performance |
| Description_INV | Fabtech-8″ RAD ARM SYS W/ 4. |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech’s 8″ Radius Arm system for the Ford Super Duty is built to handle the on and offroad demands of the truck enthusiast. This Radius Arm system is a heavy duty upgrade to the factory suspension and will provide additional strength to the vehicle. The heart of this quality system is Fabtech’s legendary tubular Radius Arms. The design of these arms comes from Fabtech’s racing experience and are built with a tubular structure reinforced by dimple die side plates and heavy gusseting for rugged offroad use. They are superior in strength to the stock stamped arms. Unique to this 8″ system is Fabtech’s extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this ground breaking system that offers proper steering performance. Fabtech’s extended length Track Bar is 4″ longer than stock and is offset to the driver side with a stout 1/4″ thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4″ BS wheels. Included in this system is the massive Dirt Logic 4.0 Resi Coilover Conversion for outstanding damping capacity offroad with a quality on road ride. The Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The giant 4″ diameter aluminum remote reservoir mounts horizontally above the Coilover to allow for full compression travel with oversized tires. The Dirt Logic 4.0 Resi Coilover is the biggest and baddest on the market for the Ford Super Duty. This high quality 8″ System provides increased strength and performance for the demanding Super Duty enthusiast. System includes a free 5 year 60,000 mile powertrain warranty. Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. |
| Description_MKT | Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit. |
| Description_SHO | 8″ RAD ARM SYS W/ 4. |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.1 |
| length | 45.5 |
| Lift/Drop Height | 8 in. |
| LTL | N |
| Title | Fabtech 8″ RAD ARM SYS W/ 4.0 & 2.25 17-21 FORD F250/F350 4WD DIESEL |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 399.0 |
| width | 46.62 |
