Description

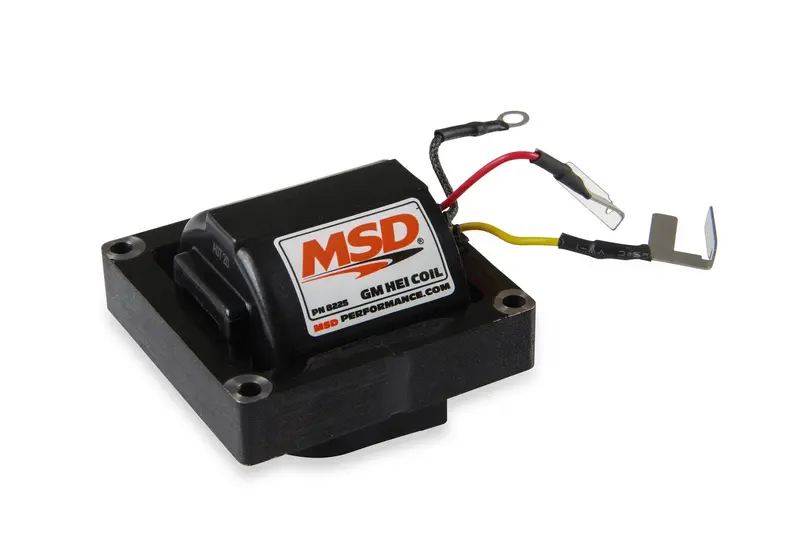

HEI owners now have a choice to replace their stock coil with the MSD high energy unitized coil for GM HEI distributors. This coil is a direct replacement of the stock coil and offers increased spark energy when used with the MSD HEI module, PN 83645. The coil features special low inductance, high temperature windings which charge faster to give you increased spark energy at higher rpm. The premium epoxy filled construction is designed to withstand harsh race applications as well as the wear and tear that daily usage dishes out, and still deliver more spark energy to the spark plugs.
Resources
Installation Instructions
Specifications:
| Description_ASC | Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Ignition Coil |
| Description_DES | GM HEI Distributor Coil |
| Description_EXT | GM HEI Distributor Coil; 3.5 mH Inductance; 42000 Max Voltage; 200mA Peak Current; 0.31 ohms Primary/9.2K ohms Secondary Resistance; 200 uS Spark Duration; 70:1 Turns Ratio; Black; |
| Description_FAB | 70:1 Turns Ratio |
| Description_FAB | CARB E.O. Approved |
| Description_FAB | Direct performance replacement for GM HEI coil-in-cap dist. |
| Description_FAB | Full Power Sparks To 9000 Rpm w/PN[83647] MSD HEI Module |
| Description_FAB | Lower Primary Resistance Produces High Voltage Output |
| Description_FAB | Recommended For Use w/MSD HEI Module PN[83647] |
| Description_INV | Distributor Coil; GM HEI |
| Description_LAB | Proposition 65 |
| Description_MKT | HEI owners now have a choice to replace their stock coil with the MSD high energy unitized coil for GM HEI distributors. This coil is a direct replacement of the stock coil and offers increased spark energy when used with the MSD HEI module, PN 83645. The coil features special low inductance, high temperature windings which charge faster to give you increased spark energy at higher rpm. The premium epoxy filled construction is designed to withstand harsh race applications as well as the wear and tear that daily usage dishes out, and still deliver more spark energy to the spark plugs. |
| Description_SHO | Ignition Coil |
| height | 3.25 |
| length | 8.15 |
| LTL | N |
| weight | 1.84 |
| width | 6.0 |
